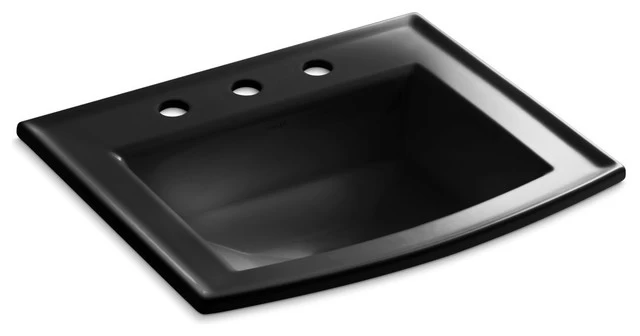

Archer Self-Rimming Lavatory With 8″ Centers, Black

Archer offers a timeless appeal, blending subtle elements of Craftsman woodworking techniques and the intricate facets of jewellery. Distinguished by its beveled edges and clean geometry, the Archer sink creates a universal look that suits an array of bathroom styles.

• 8-inch center faucet holes.
• Classic rectangular basin.
• Overflow drain.
• Coordinates with other products in the Archer collection.
• ADA: Yes

Technical Information:

• All product dimensions are nominal.
• Bowl configuration: Single
• Bowl area (Only)
• Length: 16-7/8″ (429 mm)
• Width: 12-9/16″ (319 mm)
• Water depth: 4″ (102 mm)
• Number of deck holes: 3
• Faucet hole(s): 1-1/4″ (32 mm)
• Drain hole: 1-3/4″ (44 mm)
• Template: 1051936-7, required, included

Codes/Standards:

• ASME A112.19.2/CSA B45.1
• ICC/ANSI A117.1
• Kohler One-Year Limited Warranty

• Material: Vitreous/Fireclay
• Installation: Drop-In
• Dimensions: W: 22-5/8″, H: 7-7/8″, L: 19-7/16″

Notes: :

Notice:

Countertop manufacturer or cutter must use the cut-out template provided with the product, or a current one provided by Kohler Co. Kohler Co. is not responsible for cutout errors when the incorrect cut-out template is used. ADA compliant when installed to the specific requirements of these regulations.
