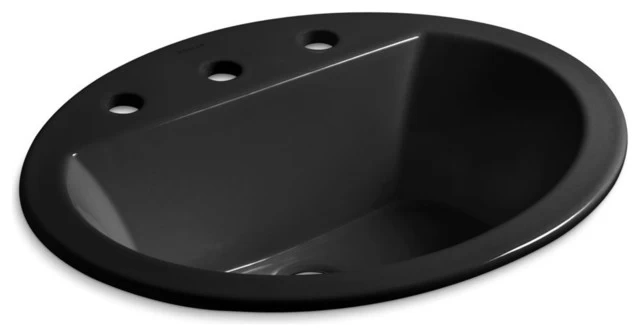

Bryant Oval Self-Rimming Lavatory With 8″ Centers, Black

With its understated, straightforward design, Bryant complements both traditional and modern bathrooms. This Bryant sink is an attractive option for bathrooms with a classic, everyday appeal. Available in an array of Kohler colors to match any bathroom decor.

• 8-inch center faucet holes.
• Oval basin.
• Overflow drain.
• ADA: Yes

• Codes/Standards
• ASME A112.19.2/CSA B45.1
• ICC/ANSI A117.1
• CSA B651
• Kohler One-Year Limited Warranty

• Material
• Vitreous china.
• Installation
• Drop-in

• Installation: Drop-in
• Bowl area
• Length: 17-3/8″ (441 mm)
• Width: 11-1/8″ (283 mm)
• Water depth: 5-5/8″ (143 mm)
• Number of deck holes: 3
• Faucet hole(s): 1-3/8″ (35 mm)
• Drain hole: 7/8″ (22 mm)
• Template: 1155261-7, required, included

Notes:

• Spout must be 5″ (12.7 cm) long (min) for adequate clearance into the lavatory when installed with the centerline as shown.
• Spout must be tall enough to clear 3″ (7.6 cm) rim height and provide a 1″ (2.5 cm) air gap per ASME A112.1.1.

Noitice: Countertop manufacturer or cutter must use the cut-out template provided with the product, or a current one provided by Kohler Co. Kohler Co. is not responsible for cutout errors when the incorrect cut out template is used. ADA, CSA B651 compliant when installed to the specific requirements of these regulations.

Dimensions

• 20-1/8″ (511 cm) x 16-1/2″ (419 cm)
